Machine Connections can be handled in a number of ways:
- Interfacing the Serial / RS232 Port. The Serial Port is harder to interface than the Parallel Port. In most cases, any device you connect to the serial port will need. Tajima DG/ML by Pulse. A new logo can be easily uploaded by connecting a computer to the projector through a LAN or serial (RS-232C) connection by using this.
- Connection via: Details: Tajima machine with a Serial Port: Serial Cable: - Type Q (25 to 25 pin) - Type R (9 pin PC to 25 pin embroidery machine) Port=COM1/COM2 Protocol=Standard Serial Baud=9600, or 38400 Data bits=8 Stop bits=1 Parity=None Handshaking=Hardware.
- Tajima Serial Connection Cable Hp Designjet 500 42 Hpgl2 Card Driver Buku Fotografi Bahasa Indonesia Yang Cummins Inline 5 Usb Driver Ultramixer Digital Audio Solutions Sampledecks 2.0.0 - Activator Transit Nxt Pro Csr Bluesuite Pepsiman Ps1 Iso How To Play Bd Iso On Ps3 Download Neoragex Completo Bioshock.
- If your embroidery machine comes with machine connection software, such as, Ricoma PC Communication Software (EMB_soft.exe) for Ricoma embroidery machine, or “Happy Link” software for Happy embroidery machine, etc., then “Connection Manager” is what you need. Please find out more information by clicking here.
- If your embroidery machine comes with a serial port but no machine connection software, please read the information below:
- Before you can send designs for stitching, you must configure the machine in EmbroideryStudio/DecoStudio. This configuration functionality allows you to add machines, change settings for machines that are already set up, or delete machines that are no longer required.
Direct connection to Tajima, Barudan, Brother, SWF, Toyota, and ZSK embroidery machines. Exclusive support for Tajima LAN-enabled embroidery machines. Support for Tajima Bi-directional serial communication and the.tbf design format. Recipes: Customized settings for sewing on specific fabrics. Editing tools: Resize, Rotate, and Skew.
- EmbroideryStudio/DecoStudio provides alternative means for sending designs directly to the embroidery machine for stitching. Depending on your software options, you can stitch to the machine using either Stitch Manager or Machine Manager.
Tajima Serial Connection Diagram
Your machine must be set up through Stitch Manager if you are sending to Stitch Manager, or Machine Manager if sending to Machine Manager.
The following information provides details pertaining to the protocols and settings required for EmbroideryStudio/DecoStudio to connect to embroidery machines.
Select your machine type:
Tajima | Barudan | Toyota | Brother | Happy | SWF | Ricoma | Cable Types

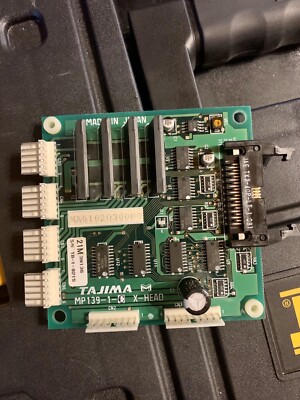

Tajima Serial Connection Software
Tajima Serial Connection Tool
Tajima Machine Connections
Machine Type | Connection via | Details |
| Tajima machine with a Serial Port | Serial Cable: – Type Q (25 to 25 pin) – Type R (9 pin PC to 25 pin embroidery machine) | Port=COM1/COM2 Protocol=Standard Serial Baud=9600, or 38400 Data bits=8 Stop bits=1 Parity=None Handshaking=Hardware |
Barudan Machine Connections
Machine Type | Connection via | Details |
| Tanto, BEAT, BEVT, BEXY, BEXR | Serial Cable (9 pin) supplied by Barudan | Port=COM1/COM2 Protocol=Standard Serial Baud=9600, or 38400 Data bits=8 Stop bits=1 Parity=None Handshaking=Embroidery Machine |
| BEMS/R, BENS/R, BEZN, BEMAX, BEDS | Serial Cable (25 pin) supplied by Barudan | Port=COM1/COM2 Protocol=Standard Serial Baud=9600 Data bits=8 Stop bits=1 Parity=None Handshaking=Embroidery Machine |
Toyota Machine Connections
Machine Type | Connection via | Details |
| AD800/820/820A/830/850/860, ESP9000, ESP9100 | Serial Cable Type G, H, U, or V | Port=COM1/COM2 Protocol=Toyota Serial Baud=9600, or 38400 Data bits=8 Stop bits=2 Parity=Odd Handshaking=Hardware |
| Alternative settings for AD850/860 | Serial Cable Type G, H, U, or V | Port=COM1/COM2 Protocol=Toyota Serial Baud=9600, or 38400 Data bits=8 Stop bits=2 Parity=None Handshaking=Embroidery Machine |
Brother Machine Connections
Machine Type | Connection via | Details |
| Professional machines except 6-head | Serial Cable – Type H | Port=COM1/COM2 Protocol=Standard Serial Baud=9600 Data bits=8 Stop bits=1 Parity=None Handshaking=Embroidery Machine |
| Brother 6-head | Special Controller Board, Cable and Software from Brother | Not applicable |
Happy Machine Connections
Machine Type | Connection via | Details |
| HCG / HCG-B / HCA (controller HMS702C and HMS802) | Serial Cable: – Type G (25 to 25 pin) – Type U (9 pin PC to 25 pin embroidery machine) | Port=COM1/COM2 Protocol=Standard Serial Baud=9600 Data bits=8 Stop bits=1 Parity=None Handshaking=Embroidery Machine |
| HCS | Serial cable is supplied with the embroidery machine | Port=COM1/COM2 Protocol=Standard Serial Baud=38400 Data bits=8 Stop bits=1 Parity=None Handshaking=Hardware OR Embroidery Machine (both work) Machine Format=Happy or Tajima |
| HCD2 | Connection Manager via Happy LAN | Connection Manager |
| HCR2 | Connection Manager via Happy LAN or Happy Link | Connection Manager |
SWF Machine Connections
Machine Type | Connection via | Details |
| SWF machines with a Serial Port | Serial Cable – Type V (9 pin) | Port=COM1/COM2 Protocol=Standard Serial Baud=38400 Data bits=8 Stop bits=1 Parity=None Handshaking=Hardware |
Ricoma Machine Connections
Machine Type | Connection via | Details |
| Ricoma | Connection Manager via Ricoma PC Communication Software | Connection Manager |
